Signal Routing

Before using the e²deesser, this is important to understand the signal routing, which is pretty simple. The incoming signal is routed to three different units:

• The Sibilants Detection algorithm, set by the Mode and controlled by the Sensitivity
• The Sibilants processing (i.e. Sibilants EQ, Sibilants Wide Band Gain, Auto and Smooth), governed by the Amount
• The Voiced processing (i.e. Voiced EQ)

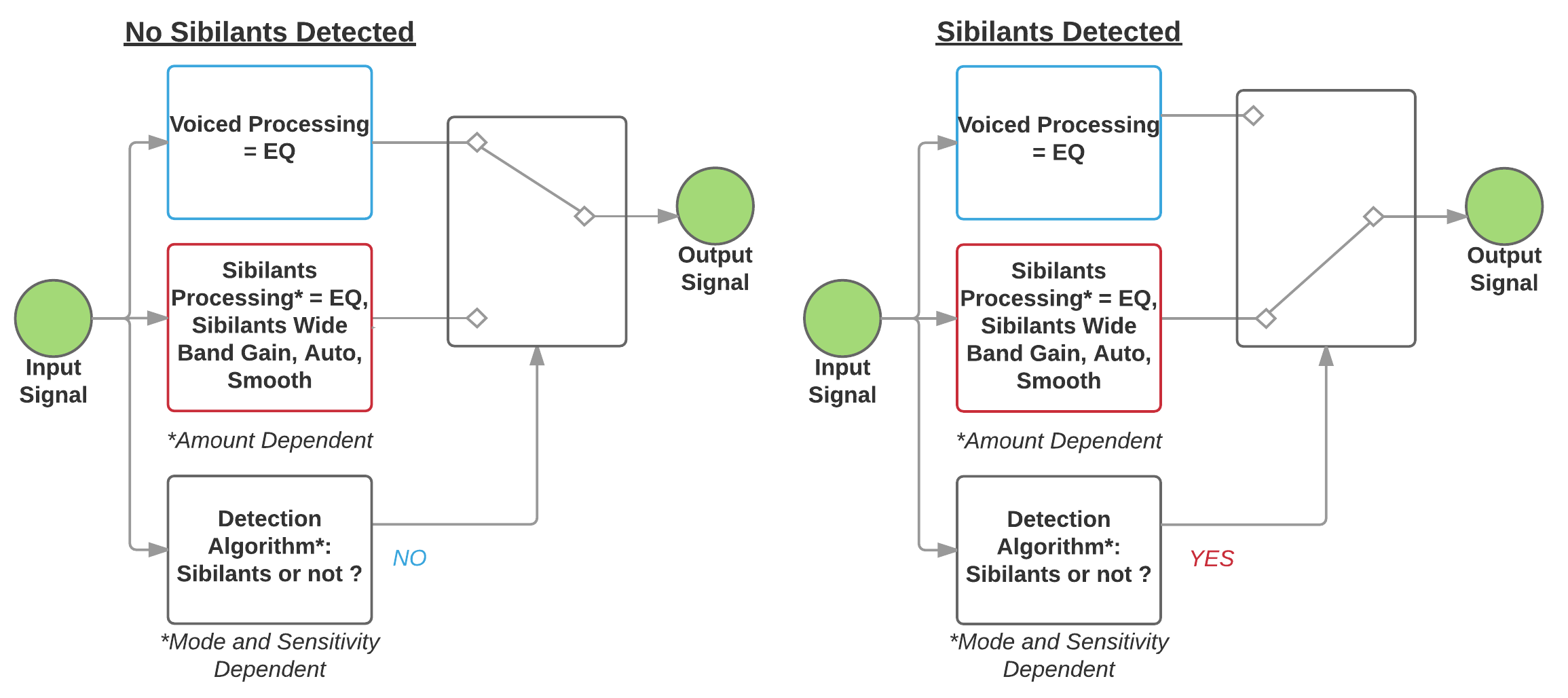

When the Sibilants Detection algorithm doesn’t detect Sibilants, the e²deesser outputs the processed Voiced path only. When the Sibilants Detection algorithm detects Sibilants, the e²deesser outputs the processed Sibilants path only. See the following diagram which illustrates this signal routing.
